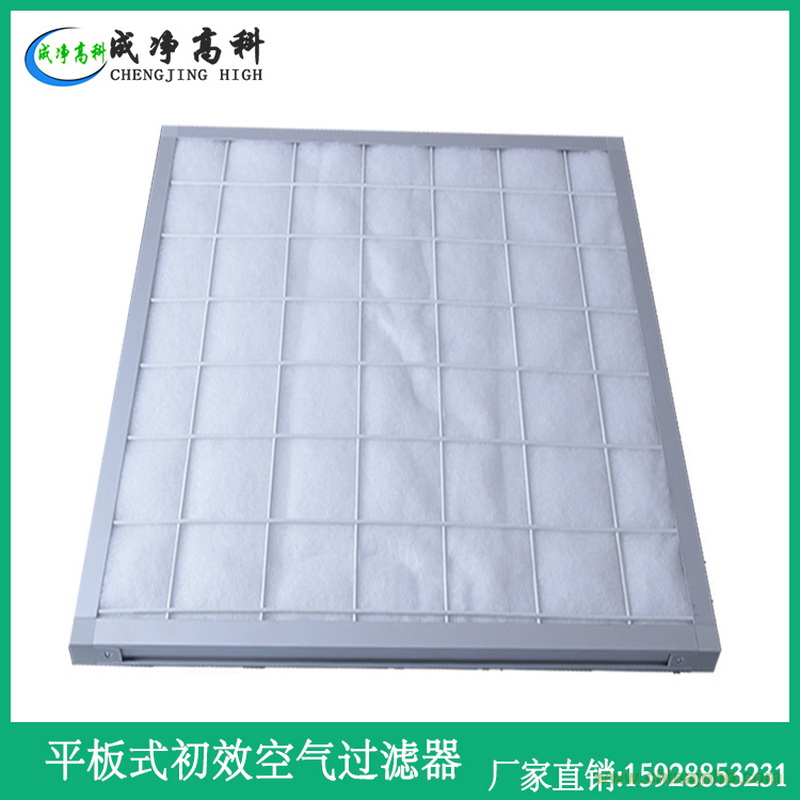

平板式粗效空氣過濾器
安徽合肥初效空氣過濾器|安徽合肥中效空氣過濾器|安徽合肥高效空氣過濾器
特點 Features
●價格便宜，厚度薄
●阻力小、風量大
●適用于空調系統的初級過濾
●Price cheap price, adopts thin thickness
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型號尺寸及其他參數
Standard specification
|
型號
model
|
外形尺寸
Outside Dimensions
|
額定風量
Rated air flow
|
初阻力
Initial resistance
|
效率（級別）
Efficiency(class)
|
濾料型號
Model of filter media
|
|
CJ-S8-1
|
295×295×10/20mm
12″×12″×1/2″/1″
|
800m3/h
|
25Pa
|
40%
(計重法)
weight
|
G1
G2
|
初效過濾棉
Early effect filter cotton
|
|
CJ-S8-2
|
495×295×10/20mm
20″×12″×1/2″/1″
|
1300m3/h
|
|
CJ-S8-3
|
495×495×10/20mm
20″×20″×1/2″/1″
|
2200m3/h
|
|
CJ-S8-4
|
595×295×10/20mm
24″×12″×1/2″/1″
|
1600m3/h
|
|
CJ-S8-5
|
595×495×10/20mm
24″×20″×1/2″/1″
|
2700m3/h
|
|
CJ-S8-6
|
595×595×10/20mm
24″×24″×1/2″/1″
|
3200m3/h
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
