★★★★該產品有動力源、激振器、和連接動力源、激振器的傳動軟軸三部分組成 。結構新穎，體積小，重量輕，操作方便，機動性強，不受電源環境的限制。不僅可以垂直打樁，也可以斜打。較人力打樁作業勞動強度低，作業效率高，代替人力打樁作業方式，實現了防汛搶險打樁作業機械化。
★★★★便攜式防汛搶險打樁機的應用領域：堵截堤岸潰口、防浪護堤、搶高堤頂、搶護堤岸崩塌、加固堤岸。是一種新型的專門用于汛期抗洪搶險、汛前、汛后堤防加固維護，江河湖堤岸的打樁機械。它不僅代替目前人力夯打的作業方式，減輕人力作業的勞動強度，提高打樁效率，而且實現了防汛搶險打樁機械化。
★★★★經廣大用戶實際使用，普遍反映該產品能滿足防汛搶險打樁作業的實際需要，用以取代人力夯打的作業方式，不僅減輕了勞動強度而且提高了作業效率，深受廣大用戶歡迎。
The product has a power source, vibrator, and connection power, drive vibrator flexible shaft of three parts.Novel structure, small volume, light weight, easy to operate, the maneuverability is strong, is not restricted by power supply environment.Vertical pile can not only, also can be inclined to play.A human piling the labor intensity is low, high work efficiency, instead of human piling method, the realization the flood-prevention piling mechanization.
Portable flood-prevention driver application fields: block the Banks dyke breaches, such as bank, rob constructed high, QiangHu bank collapse, reinforcing the bank.Is a new kind of specialized for flood fighting and emergency operations, concerned, embankment reinforcement after maintenance, sin lake river embankment of piling machinery.It is not only to replace the current human tamper dozen of practices, reduce the labor intensity of human work, improve the efficiency of piling, and implements the flood-prevention piling mechanization.
By the vast number of users actually use, generally reflect the product can meet the practical need of flood control and emergency piling, used to replace human tamper dozen of practices, not only reduce the labor intensity and improves the working efficiency, are very popular with the masses of users.
性能參數The performance parameters：
① 【防汛搶險打樁機】額定氣壓：0.4MPa～0.8MPa
② 【防汛搶險打樁機】沖擊頻率：≥45次/min
③ 【防汛搶險打樁機】適用樁徑：≤200mm
④ 【防汛搶險打樁機】樁錘運動行程：140mm
⑤ 【防汛搶險打樁機】耗氣量：3.8×lOcm/min
⑥ 【防汛搶險打樁機】使用溫度：-5℃～60
打樁機主機：
① 防汛搶險打樁機結構形式：震動沖擊調頻式
② 防汛搶險打樁機最da沖擊能：110.46N..M
③ 防汛搶險打樁機主機重量：74Kg 軟軸長度：4m
Driver host:
(1) flood-prevention driver structure forms: impact vibration frequency modulation type
(2) the flood-prevention driver biggest impact energy: 110.46 N..M
(3) flood-prevention driver host weight: 74 kg soft shaft length: 4 m
打樁機工作參數：
1) 防汛搶險打樁機作業對象：江河湖塘堤岸（均質土壤）
2) 防汛搶險打樁機樁徑：60—120mm
3) 防汛搶險打樁機長度：小于等于3000mm
4) 防汛搶險打樁機沉樁速度：500-1000mm/min
Driver working parameters:
1) flood-prevention driver operation object: rivers and lakes bank (homogeneous soil)
2) flood-prevention driver pile diameter: 60-120 mm
3) flood-prevention driver length: less than or equal to 3000 mm
4) flood-prevention pile driving speed driver: 500-1000 - mm/min
打樁機動力裝置：
★★★★柴油機型號：175R
★★★標定功率：4.85KW
★★離合器結合轉速：1200r /min
★動力裝置總質量：73kg

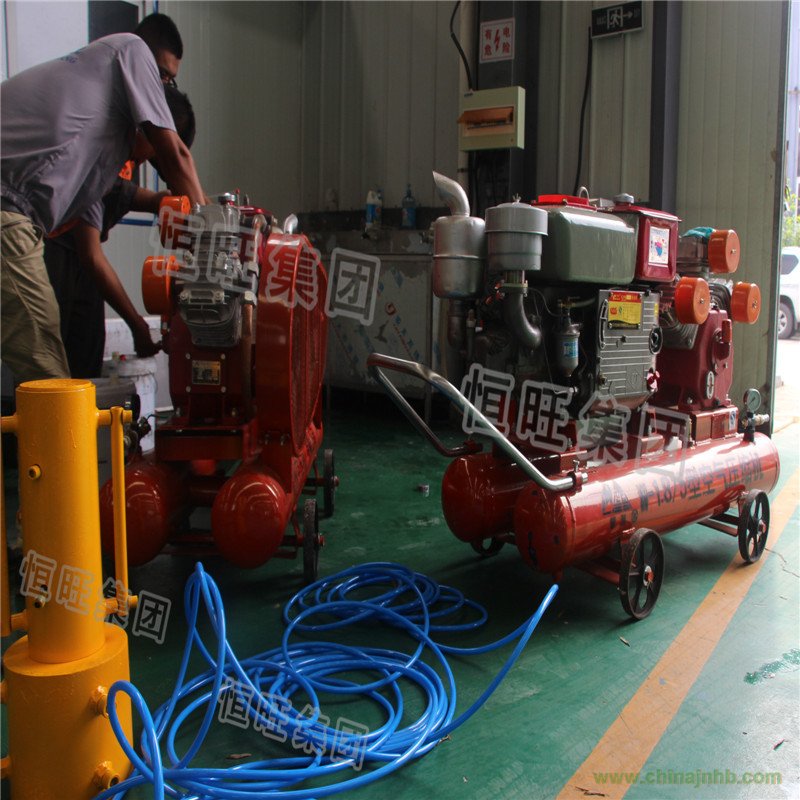

Driver power plant:
Diesel engine models: 175 r
Nominal power: 4.85 KW
Clutch combine speed: 1200 r/min
Power plant total quality: 73 kg
